Charging cable for electric vehicles - Three phase - 32A

Art. 70418

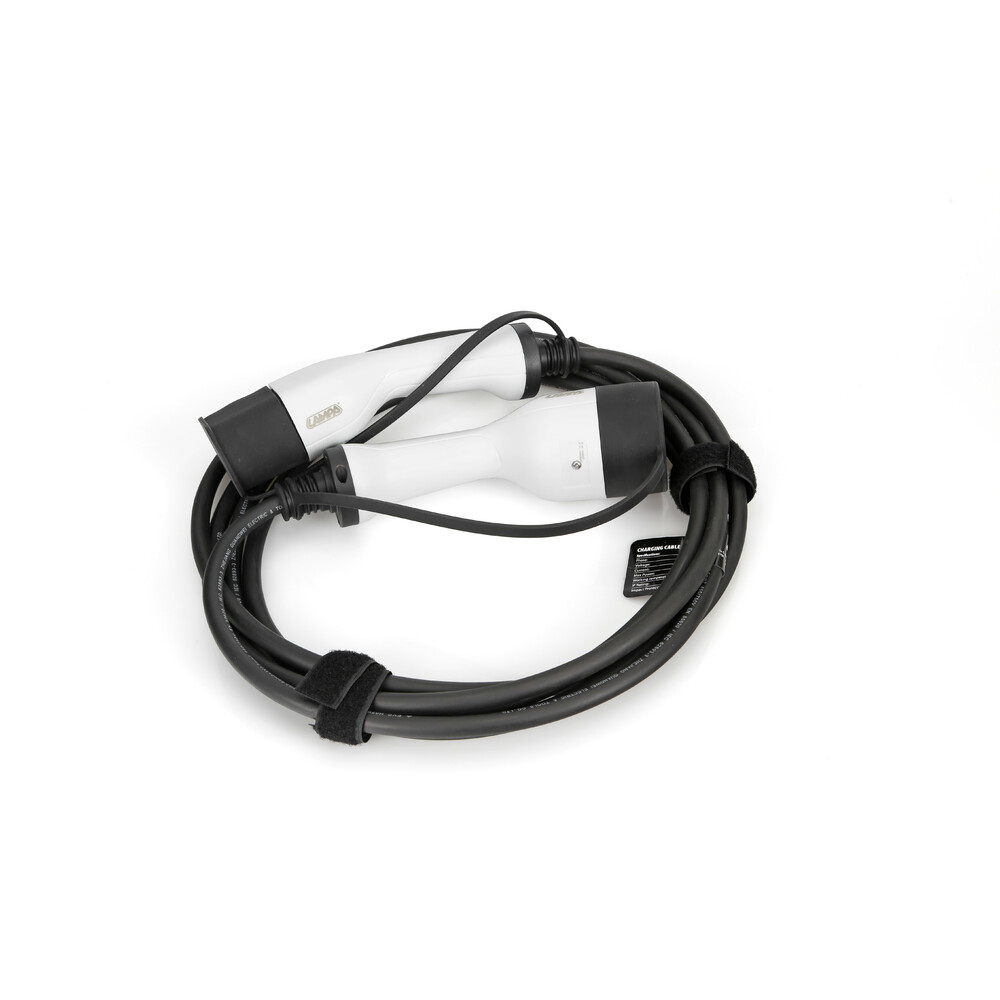

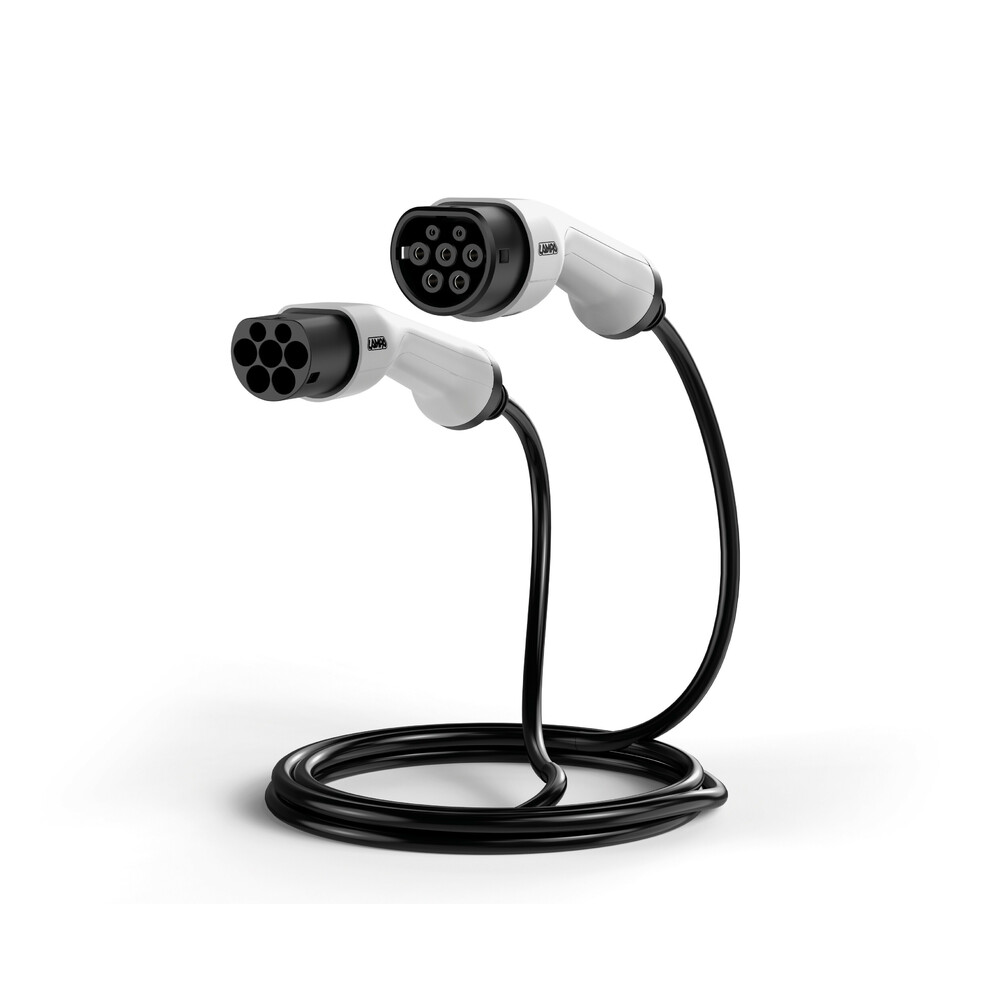

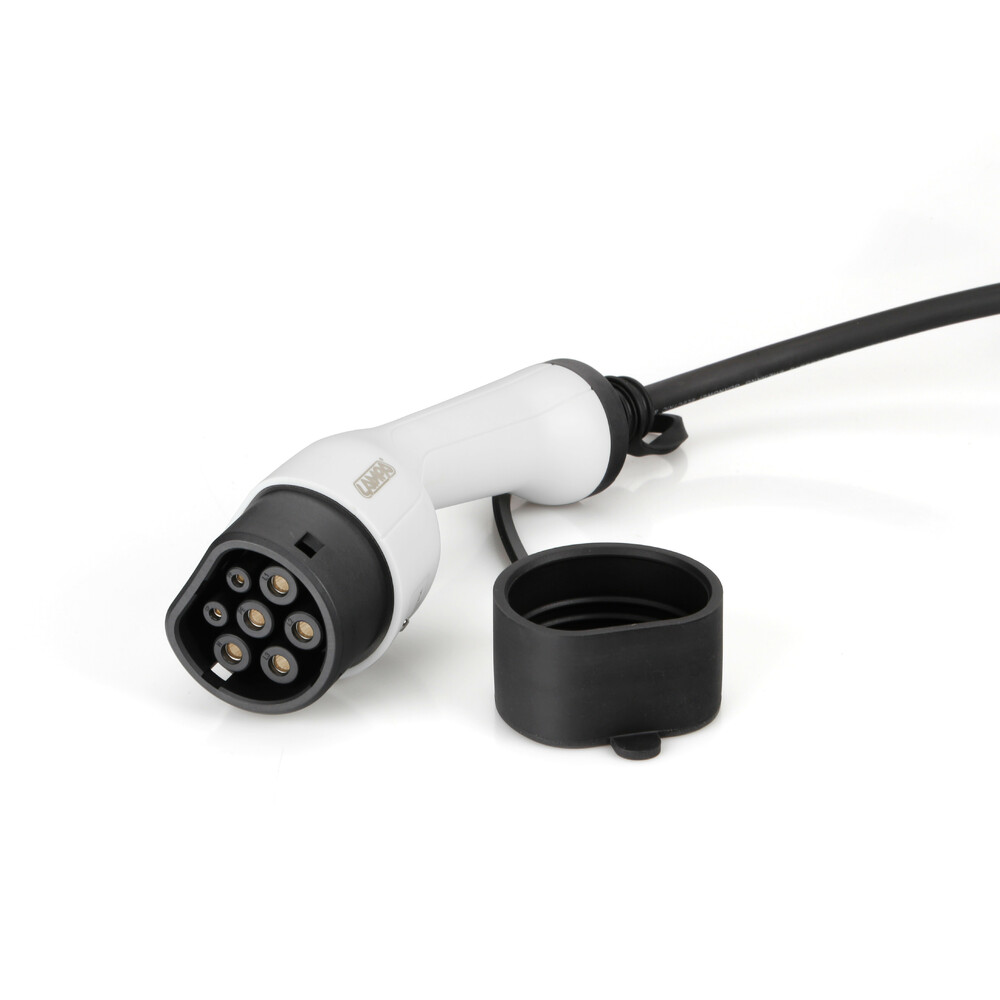

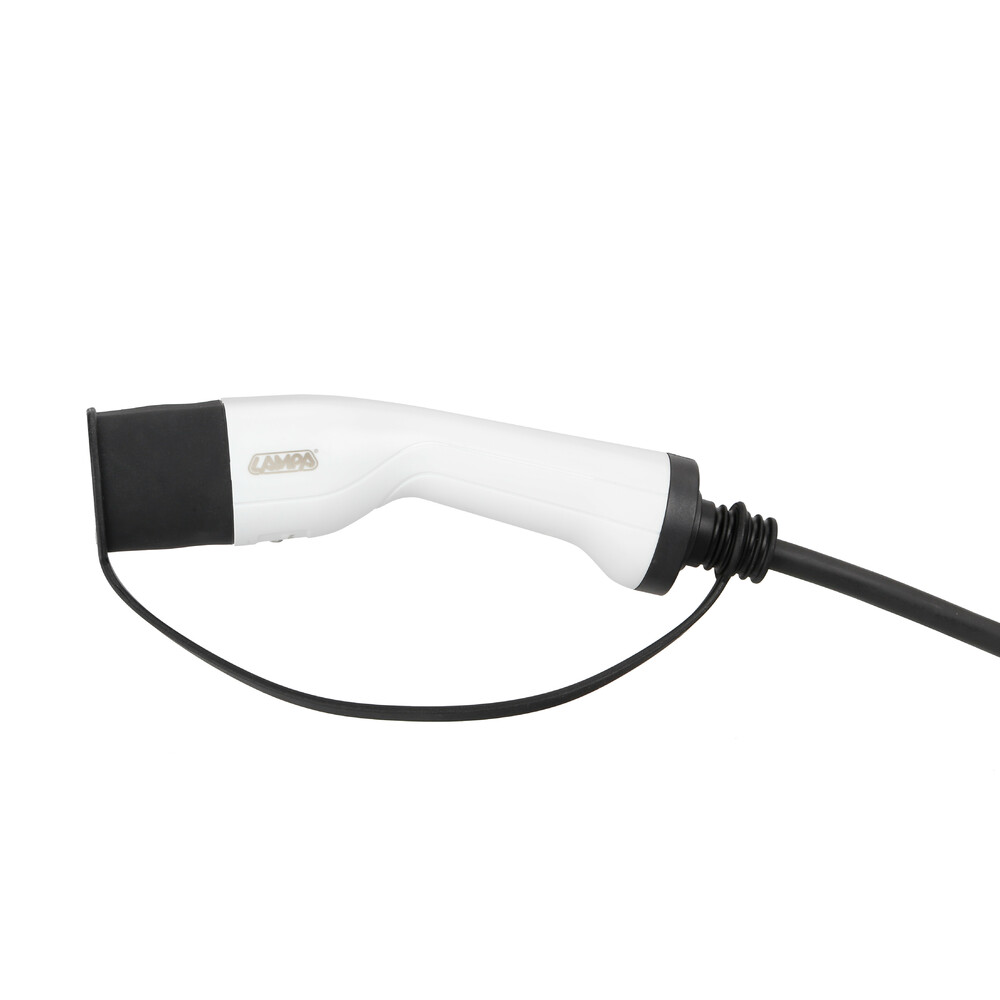

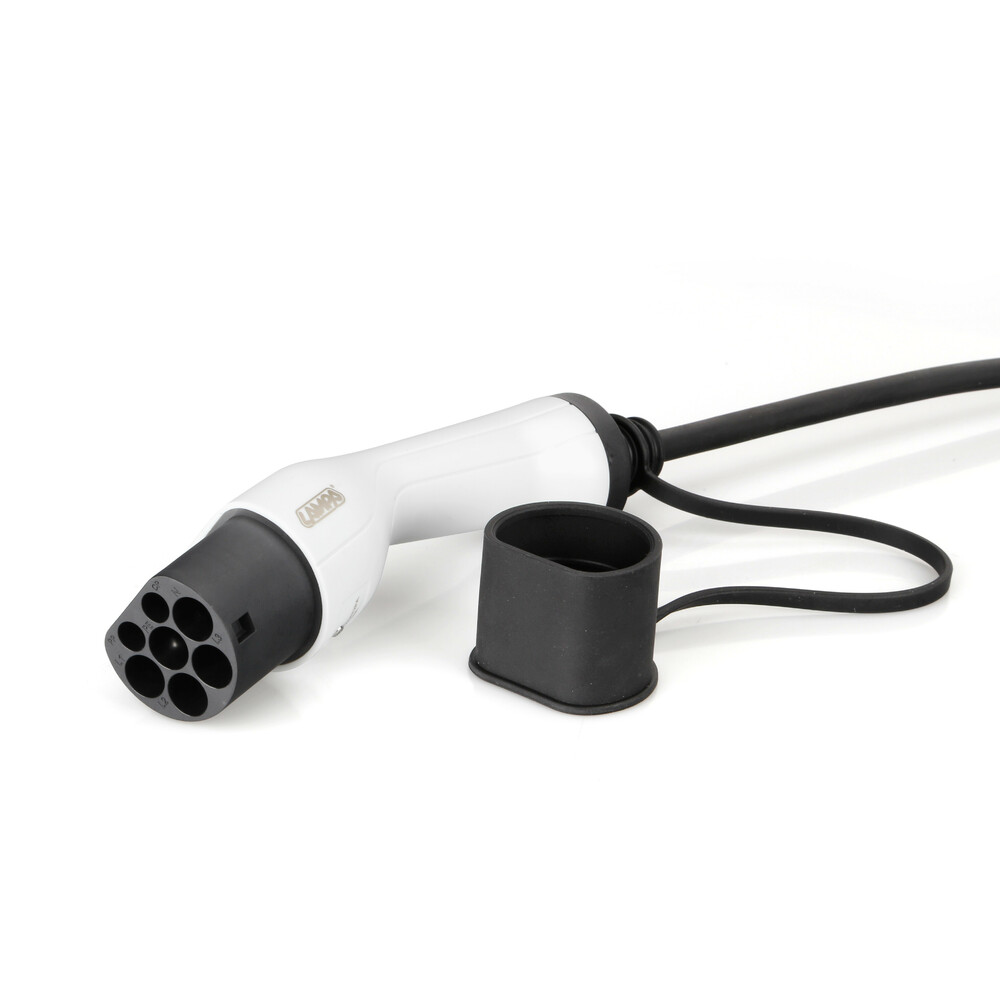

Charging cable for electric vehicles - Three phase - 32A

  • For electric vehicles and type 2 charging stations
  • Cable length: 5 m

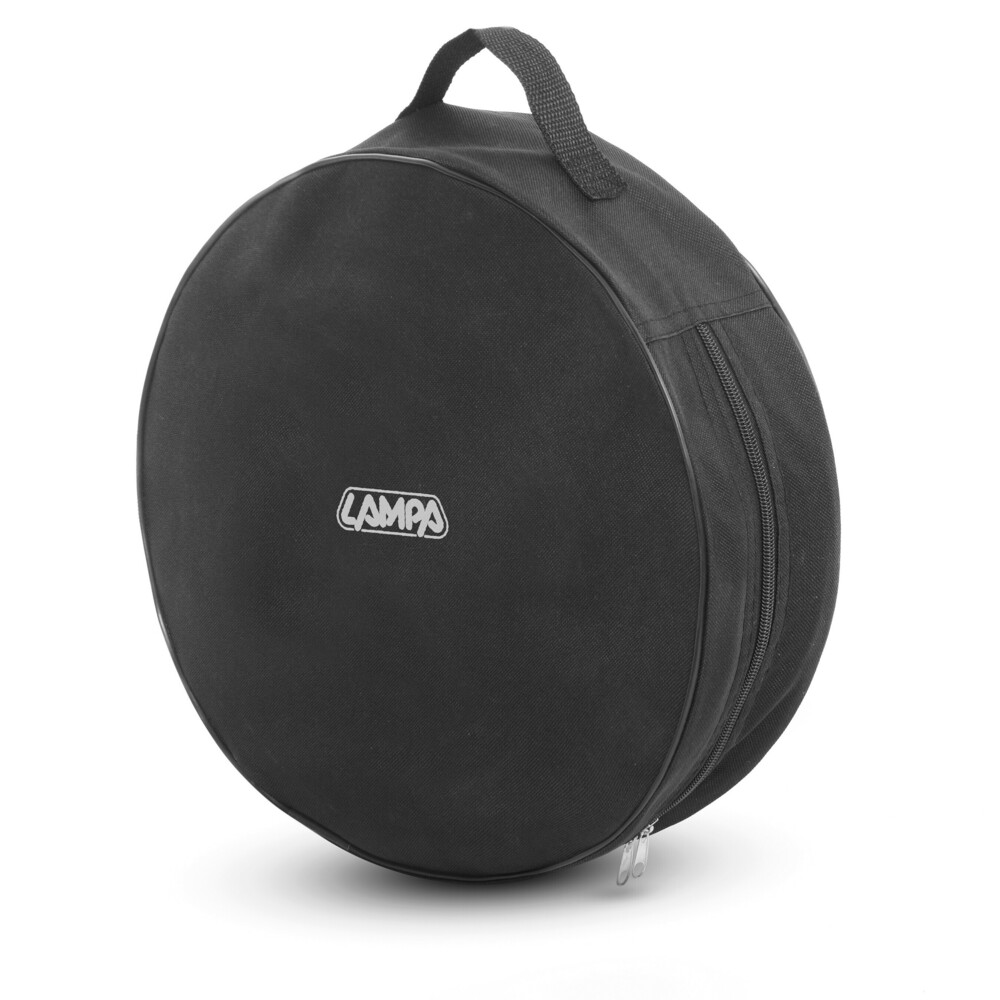

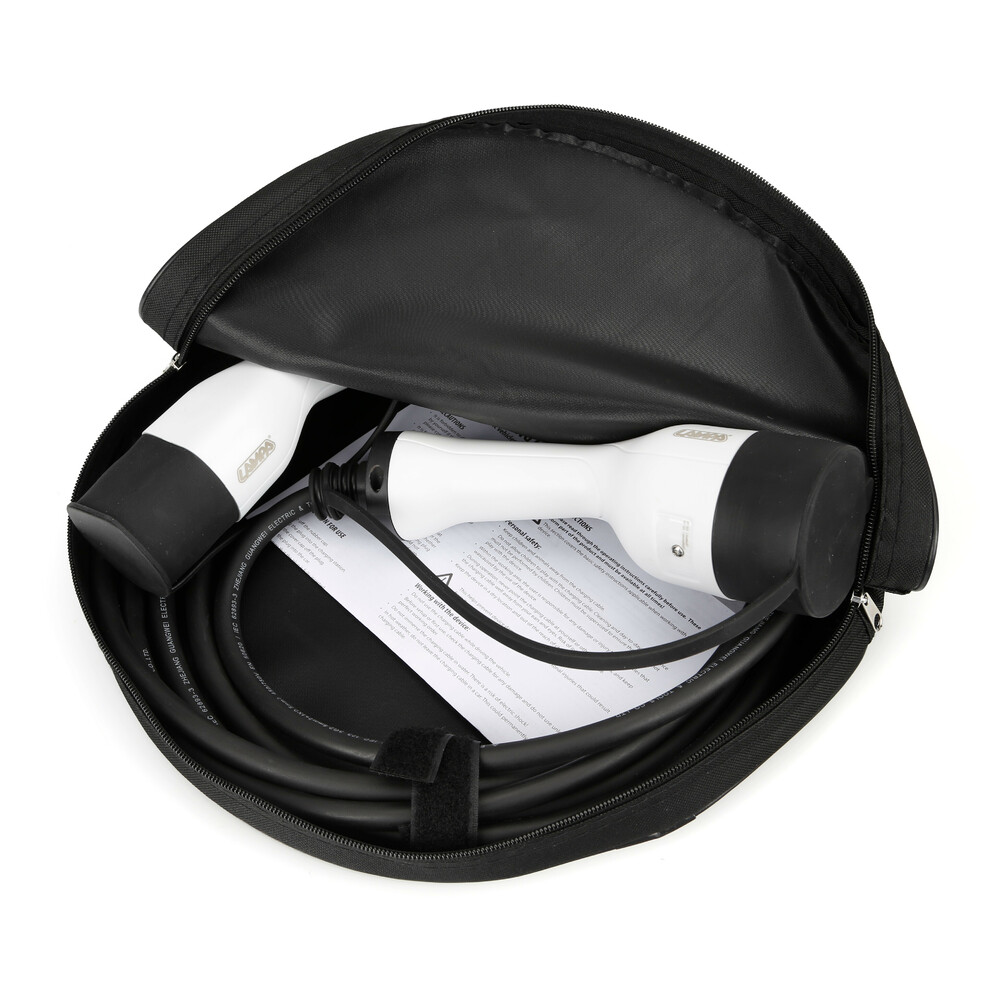

  • Zip case

Do you want to buy?

If you are interested in locating a Lampa distributor please contact us at export@lampa.it

Disclaimer: Contents, specifications and availability are subject to changes serving the technical improvement. All brands and products shown on this site are used for illustrative purposes only and are the sole property of their respective owners. No professional relationship exists between the owners of brands and products shown and LAMPA S.p.A. The set-ups and solutions offered and depicted, may not be compliant with the law in some Countries or with traffic circulation. Therefore, the purchaser should verify that their purchases are not against the applicable laws in their Countries, or the provisions on the products they intend to use on their vehicle.

Additional data
BrandLampa
Current32A
Max power22 kW
Voltage380 Vac - Trifase / Three phase
Vehicle socketType 2 (EN 62196-2)
Charging station socketType 2 (EN 62196-2)
Cable typeDiritto / Straight
Cable section5x6 + 1x0,5 mm²
Cable length500 cm
Operating temperature-40°C / +85°C
Socket protection classIP55 (con coperchio/with lid); IP65 (accoppiato/plugged)
Impact resistanceIK10

Packaging details
EAN8000692704189
PackagingScatola
Package height mm370
Package width mm370
Package depth mm100
Weight kg3,477
Packing details
Master2
